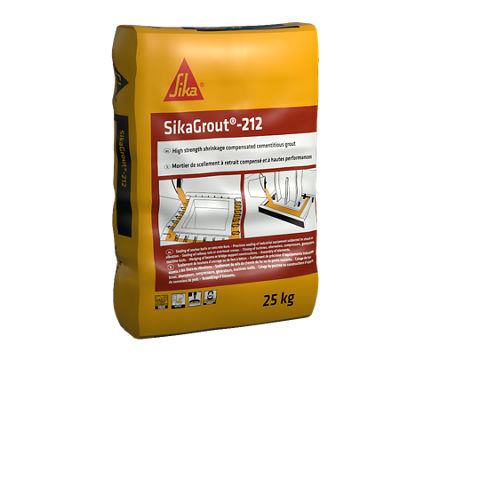

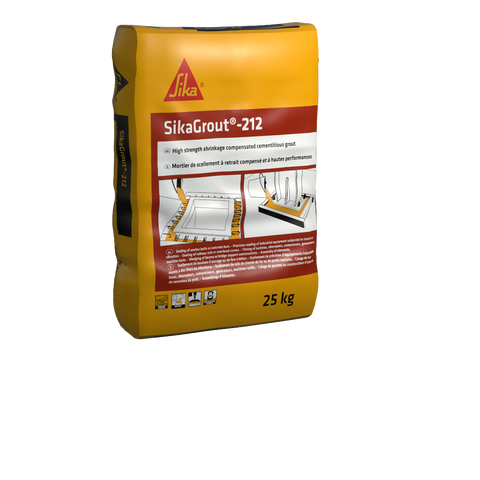

SikaGrout®-212 NG

HIGH STRENGTH SHRINKAGE COMPENSATED CEMENTITIOUS GROUT

SikaGrout®-212 NG is a 1-component, ready to mix, free flowing, low shrinkage expanding cementitious grout.

▪ Easy to use (ready to mix powder) ▪ Shrinkage compensated properties ▪ Pre-batched for quality ▪ Good flow characteristics ▪ Good bond to concrete ▪ Non-corrosive ▪ No segregation or bleeding ▪ Can be pumped or poured
Product Data Sheet Show all documents

Usage

▪ General purpose grouting ▪ Machine and base plates ▪ Dowling reinforcing bars ▪ Bedding joints in pre-cast concrete sections ▪ Filling cavities, voids, gaps and recesses ▪ Post fixings

Advantages

▪ Easy to use (ready to mix powder) ▪ Shrinkage compensated properties ▪ Pre-batched for quality ▪ Good flow characteristics ▪ Good bond to concrete ▪ Non-corrosive ▪ No segregation or bleeding ▪ Can be pumped or poured

Packaging

25 kg bags

Colour

Grey powder

Product Details

Product Information

Composition

Cement, selected fillers and aggregates, special additives

Shelf life

12 months minimum from production date.

Storage conditions

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between 5 oC and 35 oC. Protect from direct sunlight.

Density

2.3 (fresh density)

Soluble chloride ion content

≤ 0.05%                                      (EN 1015-17)
Technical Information

Compressive strength

1 day            7 days            28 days

≥ 20 MPa     ≥ 40 MPa       ≥ 60 MPa                             (EN 196-1)

Application

Application Information

Mixing ratio

2.5 – 3.5 litres clean water per 25kg bag, according to the requested workability of the mortar

Layer thickness

Minimum 10 mm/ maximum 100 mm

Ambient air temperature

+8°C min. / +30°C max

Substrate temperature

+8°C min. / +30°C max.

Pot Life

40 minutes at 20 °C
Consumption

Consumption

~20 kg of powder per 10 mm thickness for each m2

Yield

1 bag yields approximately 12.5 l of mortar
Application steps

APPLICATION INSTRUCTIONS

SUBSTRATE QUALITY / PRE-TREATMENT


The concrete shall be thoroughly clean, free from
dust, loose material, surface contamination and materials which reduce bond or prevent suction.


MIXING


Pour the water in the recommended proportion into a
suitable mixing container. While stirring slowly, add
the powder to the water. Mix with low speed (< 500
rpm) hand drill mixer to avoid entraining too much air.
Mix thoroughly at least for 3 minutes until homogenous with no lumps. Mix only full bags for best results.


APPLICATION


Stand the grout for ~2-3 minutes; stir with a trowel
and then pour into the prepared openings.
For more information on pouring techniques refer to
Sika Method Statement


CURING TREATMENT


Protect the fresh material from premature drying using an appropriate curing method e.g. curing compound, moist geotextile membrane etc.


CLEANING OF EQUIPMENT


Clean all tools and application equipment with water
immediately after use.
